1999–2007 Skoda Fabia I Fuse Box Diagram

Year of production Škoda Fabia:
1999-2007
2007–2014
2014-

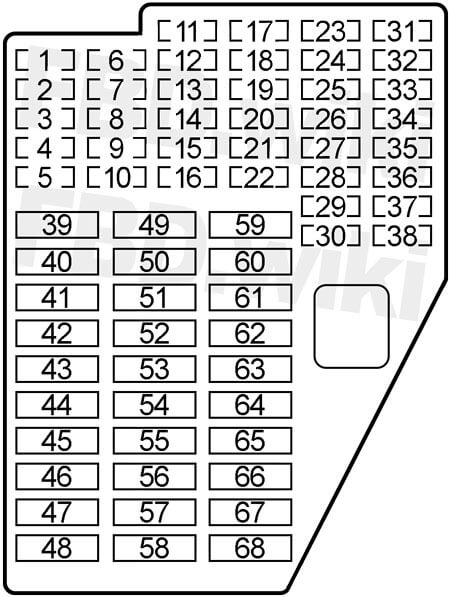

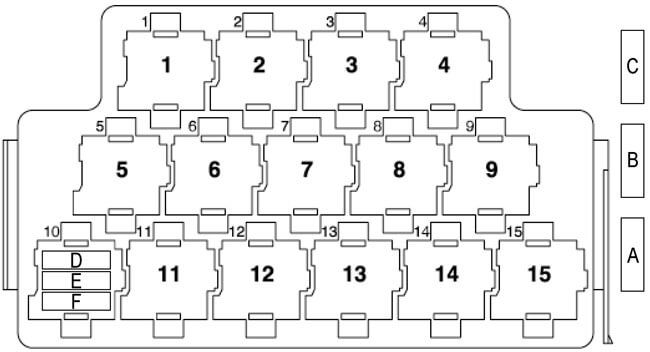

Fuse assignment in the dash panel

1999–2007 Skoda Fabia I Fuse Box Diagram

– Switch the ignition off and also the electrical component affected.

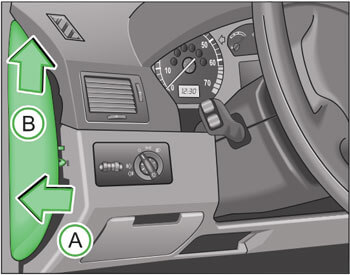

– Set the screwdriver under the safety cover (on the recess in the safety cover), lever it up carefully in the direction of the arrow (A) and take it out in the direction of the arrow (B).
1999–2007 Skoda Fabia I Fuse Box Diagram
Certain electrical components are only standard on certain vehicle model versions or only suppliable as optional equipment for certain models.




Power consumer
A
1 Instrument cluster, ESP 5
2 Brake lights 10
3 Power supply for the diagnostics, air-conditioning system 5
4 Interior lighting 10
5 Not assigned -
6 Lights and Visibility 5
7 Engine electronics, power-assisted steering 5
8 Not assigned -
9
Lambda probe 10
10 S-contacta) 5
11 Electrically adjustable rear mirrorb) 5
12 Ventilation system, air-conditioning system, Xenon headlight 5
13 Reversing light 10
14 Diesel engine control unit 10
15 Headlight cleaning system, window wiper 10
16 Instrument cluster 5
17 Petrol engine - control unitc) 5
18 Phone 5
19 Automatic gearbox 10
20 Control unit for lamp failure 5
21 Heated windscreen washer nozzles 5
22 Not assigned -
23 Right main beam 10
24 Engine electronics 10
25 Control unit for ABS, TCS control unit for ESP 5 10
26 Not assigned -
27 Not assigned -
28 Cruise control, switch for the brake and clutch pedal 5
29 Not assigned -
30 Main beam on the left and indicator light 10
31 Central locking system - door lock for the boot lid 10
32 Rear window wiper 10
33 Parking light on the right 5
34 Parking light on the left 5
35 Injector - petrol engine 10
36 Licence plate light 5
37 Rear fog light and indicator light 5
38 Heating of the external mirror 5
39 Rear window heater 20
40 Horn 20
41 Front window wiper 20
42 Cigarette lighter, power socket 15
43 Central control unit, selector lever lock for the automatic gearbox 20
44 Turn signals 15
45 Radio, navigation system 20
46 Electrical power window (at the front on the right) 25
47 Not assigned -
48 Diesel engine - control unit, injector 30
49 Central locking system 15
50 Low beam on the right 15
51 Power socket in the luggage compartment 15
52 Ignition 15
53 Electrical power window (at the rear on the right) 25
54 Low beam on the left 15
56 Control unit - petrol engine 20
57 Towing device 25
58 Electrical power window (at the front on the left) 25
59 Not assigned -
60 Horn for the anti-theft alarm system 15
61 Fuel pump - petrol engine 15
62 Electric sliding/tilting roof 25
63 Seat heaters 15
64 Headlight cleaning system 20
65 Fog lights 15
66 Electrical power window (at the rear on the left) 25
67 Not assigned -
68 Fresh air blower 25



a) For power consumers, e.g. the radio, which can be operated with the ignition switched off as long as the ignition key is not withdrawn.
b) For vehicles with an electrical power window system
c) It is 15 amps for a vehicle with a 1.2 litre engine.

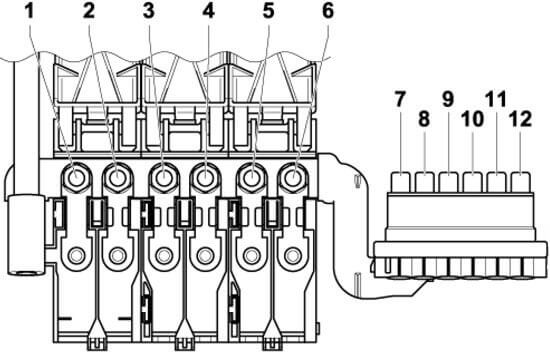

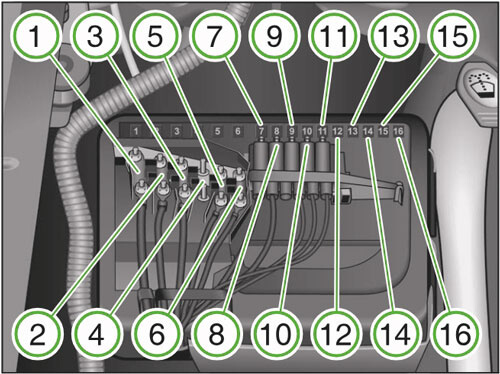

Fuse assignment at battery

1999–2007 Skoda Fabia I Fuse Box Diagram 1999–2007 Skoda Fabia I Fuse Box Diagram

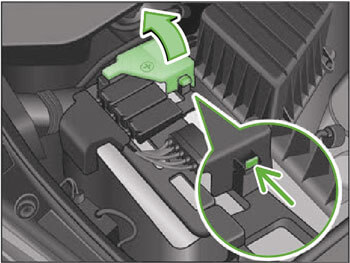

- Open the positive terminal cover (+).

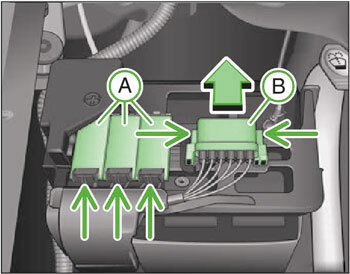

- Press onto the interlocks of the fuse covers (A) and open the covers.
- Press together the interlocks of the fuse cover (B) simultaneously and push out the cover in the direction of the arrow.
1999–2007 Skoda Fabia I Fuse Box Diagram
Certain electrical components are only standard on certain vehicle model versions or only suppliable as optional equipment for certain models.

Power consumer
A
1 Dynamo 175
2 Interior 110
3 The radiator fan 40
4 ABS or TCS or ESP 40
5 Power steering 50
6 Glow plugsa) 50
7 ABS or TCS or ESP 25
8 The radiator fan 30
9 The air conditioning system 5
10 Engine control unit 15
11 Central control unit 5
12 Automatic gearbox 5
a) Only for diesel engine 1.9/96 kW.
