2019-2022 Ford Escape & Ford Kuga
Fuses Location and Appointment Ford Escape and Ford Kuga - S, SE, SE Sport, SEL, Titanium - 1.5L E& 2.0L Ecoboost, Hybrid 2.5L Duratec, and Diesel 1.5L & 2.0L EcoBlue (2019, 2020, 2021, 2022)
Passenger Compartment Fuse Box
| No. | A | Description |
|---|---|---|
| 1 | 5 | Kuga: Restraints control module |
| 2 | 5 | Kuga: Rear heated seats |
| 3 | 10 | Kuga: Parking assist control module |
| 4 | 10 | Ignition switch |
| 5 | 20 | Lock/Unlock |
| 6 | 10 | Moonroof, DC inverter |
| 7 | 30 | Passenger door module |
| 8 | 5 | Escape: Parking assist control module |
| 9 | 5 | Electrochromatic mirror, Image processing module A, Passenger airbag deactivation indicator (Kuga) |
| 10 | 10 | Escape: Extended power module |
| 10 | Kuga: Telematics control unit module | |
| 11 | 5 | Power liftgate, Hands-free liftgate actuation module, Telematics control unit module (Escape) |
| 12 | 5 | Escape: Head up display module, Keyless keypad switch |
| 5 | Kuga: Central security module | |
| 13 | 15 | Driver door lock, Child safety locks (Kuga) |
| 14 | 30 | Driver door module |
| 15 | 15 | Escape: Extended power module |
| 16 | 15 | — |
| 17 | 15 | SYNC, Receiver transceiver module, Integrated control panel |
| 18 | 7.5 | Wireless accessory charging module, Head up display module (Kuga) |
| 19 | 7.5 | Escape: Headlamp switch pack |
| 7.5 | Kuga: Battery backed sounder | |
| 20 | 10 | — |
| 21 | 7.5 | Climate control, E-shifter module |
| 22 | 7.5 | Instrument cluster, Gateway module, Steering column control module |
| 23 | 20 | Audio unit |
| 24 | 20 | — |
| 25 | 30 | Escape: Power windows, Exterior mirrors |

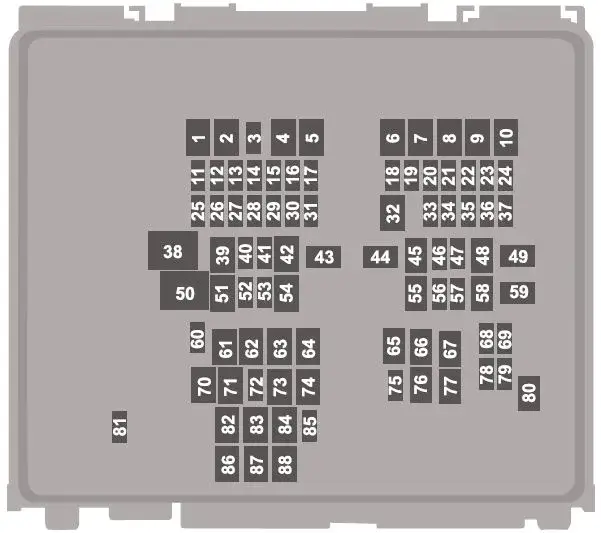

Engine Compartment Fuse Box
1. Pull the latch toward you and remove the top cover.
2. Pull the connector lever upward.
3. Pull the connector upward to remove it.
4. Pull both latches toward you and remove the fuse box.
5. Turn the fuse box over and open the lid.
| No. | A | Description |
|---|---|---|
| 1 | 30 | Diesel: Fuel filter heater |
| 2 | 40 | Kuga: Left-hand heated windshield |
| 3 | 10 | — |
| 4 | 60 | Gasoline, Diesel: Supplemental heater |
| 5 | 40 | Gasoline, Diesel: Supplemental heater |
| 6 | 40 | Gasoline, Diesel: Supplemental heater |
| 7 | 40 | Kuga: Right-hand heated windshield |
| 8 | — | — |
| 9 | 60 | Diesel: Glow plug module |
| 10 | 30 | Starter motor |
| 11 | 15 | Powertrain control module |
| 12 | 15 | Powertrain control module |
| 13 | 15 | Powertrain control module |
| 14 | 15 | Powertrain control module |
| 15 | 15 | Diesel: Powertrain control module |
| 16 | — | — |
| 17 | 20 | Kuga: Steering column lock |
| 18 | 10 | Powertrain control module |
| 19 | 10 | Anti-lock brake system module |
| 20 | — | — |
| 21 | 5 | Kuga: Fuel operated heater |
| 22 | 5 | Hybrid: Battery electronic control module |
| 23 | 5 | Hybrid: Charge port light ring |
| 24 | 20 | Amplifier |
| 25 | 20 | Diesel: Pressure line heater |
| 26 | 10 | Diesel: Reluctant dosing control module |
| 27 | 10 | Diesel: Tank heater |
| 28 | 10 | Brake on-off switch, Headlamp switch pack (Kuga) |
| 29 | 5 | Hybrid: Powertrain control module |
| 30 | 10 | Gasoline (Escape): Electronic stability control |
| 10 | Hybrid: Transmission oil pump | |
| 31 | 5 | Electronic power assist steering |
| 32 | 30 | Body control module |
| 33 | 10 | Front parking aid camera, Rear view camera, Blind spot information system, Adaptive cruise control |
| 34 | 10 | Kuga: Headlamp leveling |
| 35 | 15 | Heated steering wheel |
| 36 | 10 | Hybrid: Powertrain control module |
| 10 | Diesel: Transmission control module | |
| 37 | 20 | Horn |
| 38 | 40 | Blower motor |
| 39 | — | — |
| 40 | 15 | Escape: Heated wiper park |
| 41 | 20 | Amplifier |
| 42 | 30 | Driver power seat |
| 43 | 50 | Hybrid: Electric water pump |
| 44 | 40 | Trailer tow module |
| 45 | 30 | Passenger power seat |
| 46 | 20 | — |
| 47 | 20 | Heated seats |
| 48 | 40 | Anti-lock brake control valves |
| 49 | 60 | Anti-lock brake control pump |
| 50 | 60 | Cooling fan |
| 51 | 30 | Moonroof. |
| 52 | 5 | Hybrid: DC/DC converter |
| 5 | Kuga (09.2020→): Rear console USB charger | |
| 53 | 10 | Hybrid: Battery charge control module |
| 54 | — | — |
| 55 | — | — |
| 56 | 5 | Kuga Hybrid (09.2020→): DC/DC converter |
| 57 | 10 | Data link connector |
| 58 | 40 | Hybrid: Auxiliary power distribution box |
| 59 | 40 | Body control module |
| 60 | 5 | Escape: USB smart charger |
| 61 | 20 | Rear cargo power point |
| 62 | 20 | Kuga (→09.2020): Console power point |
| 63 | 30 | — |
| 64 | 30 | Power liftgate |
| 65 | — | — |
| 66 | 20 | Kuga: Rear heated seat module |
| 67 | 20 | Kuga: Fuel operated heater |
| 68 | 5 | Gasoline: Mass air flow and intake air temperature sensor |
| 69 | 15 | except Diesel: Port fuel injectors |
| 70 | 20 | Rear console power point |
| 20 | Kuga (09.2020→07.2021): Front console power point | |
| — | Kuga (07.2021→): — | |
| 71 | 20 | Media bin power point |
| 72 | 20 | Rear window wiper |
| 73 | — | — |
| 74 | 30 | Windshield wiper motor |
| 75 | 10 | Escape: Heated exterior mirrors |
| 76 | 30 | Heated backlight |
| 77 | — | — |
| 78 | 10 | Air conditioning clutch |
| 79 | 10 | Kuga: Headlamp washer |
| 80 | 20 | Fuel pump |
| 81 | 10 | Rear window washer pump |
| 82 | 40 | Power inverter (Kuga →09.2020) |
| 83 | — | — |
| 84 | 40 | Driveline control module |
| 85 | 5 | Rain sensor |
| 86 | — | — |
| 87 | — | — |
| 88 | — | — |
