'10-'14 Honda Insight

Fuse Box Layout Hybrid Honda Insight LX, EX (2009, 2010, 2011, 2012, 2013, 2014)



Passenger Compartment

2010-2014 Honda Insight Fuse Box Location

  1. Fuse Box
  2. Tire Pressure Monitoring System (TPMS) Control Unit
  3. Gauge Control Module
  4. Gauge Control Module
  5. Supplemental Restraint System (SRS) Unit
  6. Electronic Power Steering (EPS) Control Unit
  7. Hatch Release Actuator Relay

Passenger Compartment Fuse Box

2010-2014 Honda Insight Fuse Box Diagram



Fuses Specifications
No.AProtected Component
115Audio-Navigation Unit (With Navigation), Audio Unit (Without Navigation), Cargo Area Light, Ceiling Light, Data Link Connector (DLC), Gauge Control Module, Immobilizer-Keyless Control Unit, HandsFreeLink Control Unit, Individual Map Light, Multiplex Integrated Control Unit (MICU) (+B BACK UP), Motor Control Module (MCM)
27.5Tire Pressure Monitoring System (TPMS) Control Unit
320Power Window Master Switch
4- -
510Back-up Light, Multiplex Integrated Control Unit (MICU)
610Supplemental Restraint System (SRS) Unit
710Powertrain Control Module - PCM (VBSOL)
87.5Occupant Detection System (ODS) Unit, Front Passenger's Airbag Cutoff Indicator, Supplemental Restraint System (SRS) Unit
9- -
107.5A/C Compressor Clutch Relay, Blower Motor Relay, Climate Control Unit, Fan Control Relay (A/C Diode A), Optional Connector, Power Mirror Switch, Radiator Fan Relay (A/C Diode A), Rear Window Defogger Relay, Recirculation Control Motor
117.5EPS Control Unit (IG1), VSA Modulator-control Unit (IG1), Yaw Rateacceleration Sensor (With VSA), ABS Modulator-Control Unit (MTR) (Without VSA)
1210DC-DC Converter, Evaporative Emission Control (EVAP) Canister Purge Valve, Powertrain Control Module - (Idle Stop Switch), Mass Air Flow (MAF) Sensor, Secondary Heated Oxygen Sensor (HO2S)
1320Accessory Power Socket
147.5Audio-Navigation Unit (With Navigation), Audio Unit (Without Navigation), Key Interlock Solenoid, HandsFreeLink Control Unit, MICU (ACC), Optional Connector
157.5Daytime Running Light, Multiplex Integrated Control Unit (MICU)
1610Rear Window Wiper Motor
1720Front Passenger's Power Window Motor, Front Passenger's Power Window Switch Light
1820Right Rear Power Window Motor, Power Window Master Switch, Right Rear Power Window Switch Light
1920Left Rear Power Window Motor, Power Window Master Switch, Left Rear Power Window Switch Light
2015Fuel Pump (PGM-FI Main Relay No.2 ('12-'14)), Immobilizer-Keyless Control Unit, Powertrain Control Module - PCM (IG1) ('12-'14)
2115Washer Motor, Multiplex Integrated Control Unit (MICU)
227.5Electrical Load Detector (ELD), Gauge Control Module, Multiplex Integrated Control Unit - MICU (IG1 METER), Motor Control Module (MCM), Shift Lock Solenoid, Tire Pressure Monitoring System (TPMS) Control Unit
2310Turn Signal/Hazard Relay, Multiplex Integrated Control Unit (MICU)
2410Brake Pedal Position Switch, High Mount Brake Light, Left Brake Light, Right Brake Light, Horn Relay, Multiplex Integrated Control Unit (MICU), Powertrain Control Module (PCM)
25- -
2610Air Fuel Ratio (A/F) Sensor, Evaporative Emission Control (EVAP) Canister Vent Shut Valve, Fuse: No. 31 (7.5 A)
2730Power Door Lock, Multiplex Integrated Control Unit (MICU)
2820Headlamp (Main), Multiplex Integrated Control Unit (MICU)
2910Parking Light, Multiplex Integrated Control Unit (MICU)
3030Radiator Fan Motor (Radiator Fan Relay), A/C Condenser Fan Motor (Fan Control Relay) ('12-'14)
317.5A/C Condenser Fan Relay (A/C Diode B)
3210Right Headlight (Low Beam)
3320Ignition Coil Relay, Fuses (Engine Compartment): No.1 (15 A), 2 (15 A)
3410Left Headlight (Low Beam)
3515Front Passenger's Door Lock Actuator, Right Rear Door Lock Actuator
3615Driver's Door Lock Actuator, Left Rear Door Lock Actuator
3730ABS Modulator-Control Unit (Without VSA), VSA Modulator-Control Unit
3815Driver's Door Lock Actuator
3915Crankshaft Position (CKP) Sensor, Camshaft Position (CMP) Sensor, Electronic Throttle Control System (ETCS) Control Relay, Injectors, Powertrain Control Module - PCM (IGP), PGM-FI Main Relay No.1, PGM-FI Main Relay No.2 (Fuel Pump)
40- -
41- -
4210Motor Control Module (MCM), MCM Relay No.1, MCM Relay No.2
437.5A/C Compressor (A/C Compressor Clutch Relay)
447.5Starter Cut Relay, Powertrain Control Module - PCM (STS)
457.5Hatch Release Actuator Relay, Hatch Release Actuator
46- -
4730A/C Condenser Fan Motor (A/C Condenser Fan Relay), Radiator Fan Motor (Fan Control Relay) ('10-'11)
4810Left Headlight (High Beam)
4915Front Passenger's Door Lock Actuator, Right Rear Door Lock Actuator
5015Left Rear Door Lock Actuator
5110Right Headlight (High Beam)
5215Electronic Throttle Control System (ETCS) Control Relay, Powertrain Control Module - PCM (IG1ETCS)
5310Intelligent Power Unit (IPU) Module Fan (Motor Control Module (MCM) Relay No.2), Motor Power Inverter (MPI) Module (Motor Control Module (MCM) Relay No.2)
54- -
5510Left Power Mirror Defogger, Right Power Mirror Defogger
5630Front Wiper, Multiplex Integrated Control Unit (MICU)
5730Blower Motor (Blower Motor Relay)
5830ABS Modulator-Control Unit (Without VSA), VSA Modulator-Control Unit
5930Without Power Mirror Defogger: Rear Window Defogger Relay (Lower Rear Window Defogger, Upper Rear Window Defogger, Noise Reduction Condenser)
40With Power Mirror Defogger: Rear Window Defogger Relay (Lower Rear Window Defogger, Upper Rear Window Defogger, Noise Reduction Condenser, Fuse: No.55 (10 A))
6050Ignition switch
30Headlamp Washer
Relay
R1Power Window
R2Blower Motor
R3Air Fuel Ratio (A/F) Sensor
R4Lighting
R5Ignition Coil
R6PGM-FI Main No.1
R7Electronic Throttle Control System (ETCS) Control
R8Rear Window Defogger
R9Driver's Door Unlock
R10Starter Cut
R11 -

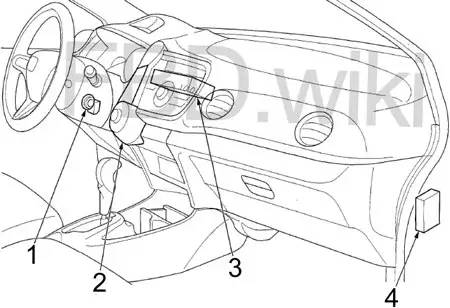

2010-2014 Honda Insight Immobilizer Module Location

  1. Immobilizer-Keyless Control Unit
  2. Climate Control Unit
  3. Audio-Navigation Unit (With Navigation), Audio Unit (Without Navigation)
  4. HandsFreeLink Control Unit

2010-2014 Honda Insight Motor Control Module (MCM) Location

  1. Motor Control Module (MCM)
  2. Motor Control Module (MCM) Relay No.1
  3. Motor Control Module (MCM) Relay No.2

Engine Compartment

2010-2014 Honda Insight Motor Relay Block Location

  1. ABS Modulator-Control Unit (Without VSA), VSA Modulator-Control Unit
  2. Powertrain Control Module (PCM)
  3. Relay Box No.1
  4. Relay Box No.2

Engine Compartment Relay Box No.1

2010-2014 Honda Insight Motor Relay Location

Fuses Specifications
No.AProtected Component
115Exhaust Side Ignition Coils
215Intake Side Ignition Coils
Relay
R1Fan Control
R2PGM-FI Main No.2 (Fuel Pump)

Engine Compartment Relay Box No.2

2010-2014 Honda Insight Motor Relay Location

Relay
No.Relay
R1A/C Condenser Fan
R2Radiator Fan
R3A/C Compressor Clutch

Battery Terminal Fuse Box

2010-2014 Honda Insight Motor Relay Location

These fuses are not serviceable; replace the battery terminal fuse box as an assembly.

Fuses Specifications
No.AProtected Component
1100DC-DC Converter, Lighting Relay, Power Window Relay, Driver's Door Unlock Relay, Fuses: No. 1, 2, 3, 9, 17, 18, 19, 25, 26, 27, 28, 29, 30, 32, 33, 34, 37, 38, 39, 40, 41, 42, 43, 45, 46, 47, 52, 53, 57, 58, 59, 60
260Electronic Power Steering (EPS) Control Unit
320Fuses: 23, 24
