Infiniti FX35 and FX45

Location and description of fuses and relay Infiniti FX35 with engine 3.5L V6 VQ35DE and Infiniti FX45 with engine 4.5L V8 VK45DE (S50; 2002, 2003, 2004, 2005, 2006, 2007, 2008)



Passenger Compartment

2003-2008 Infiniti FX35 and Infiniti FX45 Fuse Block Location

  1. Body Control Module (BCM)
  2. Fuse Box
  3. Intelligent Key Unit
  4. Steering Lock Unit
  5. NATS Antenna Amplifier
  6. Lane Departure Warning (LDW) Camera Unit
  7. Low Tire Pressure Warning Control Unit
  8. TEL Adapter Unit
  9. Display Control Unit
  10. Unified Meter and A/C Amplifier
  11. Intelligent Cruise Control (ICC) Unit
  12. Engine Control Module (ECM)
  13. AWD Control Unit
  14. Automatic Drive Positioner Control Unit
  15. NAVI Control Unit
  16. Air Bag Diagnosis Sensor Unit
  17. Rear View Camera Control Unit
  18. Driver Seat Control Unit

Passenger Compartment Fuse Box

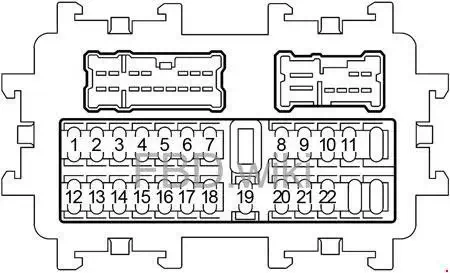

2003-2008 Infiniti FX35 and Infiniti FX45 Fuse Panel Diagram



Fuses Specifications
No.ADescription
115Body Control Module (BCM), Engine Control Module (ECM), Fuel Injectors
215Luggage Room Power Socket
315Rear Power Socket
415Front Power Socket No.2
5- -
610Audio, Display Control Unit, Satellite Radio Tuner, Unified Meter and A/C Amplifier, A/C and AV Switch, Antenna Amplifier, Body Control Module (BCM), Rear View Camera Control Unit, NAVI Control Unit, DVD Player, TEL Adapter Unit, Intelligent Key Unit, Outside Key Antenna, Combination Meter
715Front Power Socket No.1
815Heated Mirror
910Combination Meter, Automatic Drive Positioner Control Unit
1015Blower Motor, Unified Meter and A/C Amplifier
1115Blower Motor, Unified Meter and A/C Amplifier
1210Intelligent Cruise Control (ICC), ICC Sensor, ICC Brake Switch, ICC Brake Hold Relay, Engine Control Module, Unified Meter and A/C Amplifier, Stop Lamp Switch, Shift Lock Solenoid, ECV Solenoid Valve (A/C Compressor), Display Control Unit, NAVI Control Unit, TEL Adapter Unit, Intelligent Key Unit, Steering Angle Sensor, Snow Mode Switch, Lane Departure Warning (LDW) Switch, LDW Camera Unit, LDW Chime, Auto Anti-Dazzling Inside Mirror (Compass), ASCD Brake Switch, Rear Window Defogger Relay, AWD Control Unit
1310Air Bag Diagnosis Sensor Unit, Occupant Classification System Control Unit
1410Combination Meter
1510Heated Seat Switch
1610'03-'05: Oxygen Sensors, Air Fuel Ratio Sensors
1720BOSE Speaker Amplifier
1815Back Door Closure Control Unit
1910Combination Meter, Unified Meter and A/C Amplifier, Data Link Connector, Rear View Camera Control Unit, Security Indicator Lamp, Clock
2010Stop Lamp Switch, Intelligent Cruise Control (ICC), ICC Brake Hold Relay, ABS, Unified Meter and A/C Amplifier, Rear Combination Lamp Control Unit
2110AWD Control Unit
2215Body Control Module (BCM), Key Switch, Key Switch and Ignition Knob Switch, NATS Antenna Amplifier, Automatic Drive Positioner Control Unit

2003-2008 Infiniti FX35 and Infiniti FX45 Blower Relay Location

Relay
No.Description
R1Blower
R2Accessory

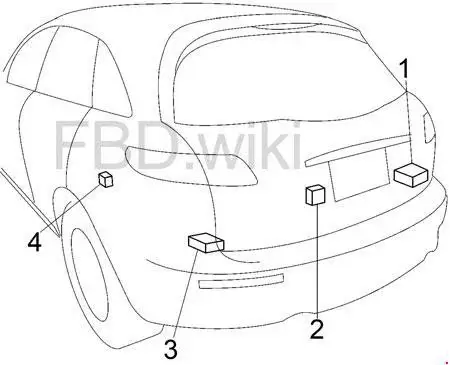

2003-2008 Infiniti FX35 and Infiniti FX45 Back-Up Lamp Relay Location

  1. BOSE Speaker Amplifier
  2. Back Door Closure Control Unit
  3. Rear Combination Lamp Control Unit
  4. '03-'05: Back-Up Lamp Relay

Engine Compartment

2003-2008 Infiniti FX35 and Infiniti FX45 Fuse Box Location

  1. Fuse Box No.2
  2. Relay Box No.1
  3. Fuse Box No.1 (IPDM)
  4. Fusible Link Holder
  5. '06-'08: Relay Box No.2
  6. Front Wiper Motor
  7. ABS Control Unit

Engine Compartment Fuse Box No.1

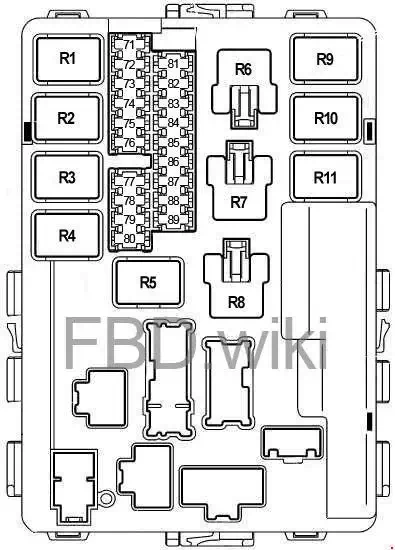

2003-2008 Infiniti FX35 and Infiniti FX45 Fuse Box Chart



Fuses Specifications
No.ADescription
7110Tail Lamp Relay, Parking Lamp, Tail Lamp, Side Marker Lamp, IPDM CPU, Headlamp Aiming Control, Rear Combination Lamp Control Unit, License Plate Lamp, Glove Box Lamp, Combination Switch, Microphone (Illumination: A/T Device, Snow Mode Switch, VDC OFF Switch, Clock, Hazard Switch, Heated Seat Switch, Door Mirror Remote Control Switch, LDW Switch, A/C and AV Switch, DVD Player, Front Power Socket)
7210Right Headlamp (High Beam)
7330Front Wiper Relay
7410Left Headlamp (High Beam)
7520Rear Window Defogger Relay
7615Right Headlamp (Low Beam)
7720Engine Control Module (ECM), ECM Relay, Intake Valve Timing Control Solenoid Valve, Mass Air Flow Sensor, Crankshaft Position Sensor, Camshaft Position Sensors, EVAP Canister Purge Volume Control Solenoid Valve, Ignition Coils, Condenser, Intake Valve Timing Control Position Sensors (VK45DE)
7815IPDM CPU, Windshield Wiper De-icer
7910Air Conditioner Compressor Clutch
8020Rear Window Defogger Relay, Fuse: "8"
8115Fuel Pump Relay, Fuel Level Sensor Unit and Fuel Pump, Engine Control Module (ECM)
8210ABS
8310Transmission Control Module (TCM), Back-Up Lamp Relay, Display Control Unit, NAVI Control Unit, Rear View Camera Control Unit
8410Combination Switch, Front and Rear Washer System
8510Air Fuel Ratio Sensors, Heated Oxygen Sensors
8615Left Headlamp (Low Beam)
8715Throttle Control Motor Relay, Engine Control Module (ECM)
8815Front Fog Lamp Relay
8910Data Link Connector, EVAP Canister Vent Control Valve, VIAS Control Solenoid Valve (VK45DE)
Relay
R1Engine Control Module
R2Headlamp High
R3Headlamp Low
R4Starter
R5Ignition
R6Cooling Fan (No.3)
R7Cooling Fan (No.1)
R8Cooling Fan (No.2)
R9Throttle Control Motor
R10Fuel Pump
R11Front Fog Lamp

Engine Compartment Fuse Box No.2

2003-2008 Infiniti FX35 and Infiniti FX45 Fuse Block Layout



Fuses Specifications
No.ADescription
3130Trailer Tow Lights
3215Audio, Subwoofer, Display Control Unit, A/C and AV Switch, NAVI Control Unit, DVD Player, TEL Adapter Unit
3310Alternator
3415Horn Relay
3510Intelligent Cruise Control (ICC)
3610Daytime Light Relay
3710Transmission Control Module (TCM)
3810Intelligent Key Unit, Key Switch and Ignition Knob Switch, Passenger Side Select Unlock Relay, Steering Lock Unit, Intelligent Key Warning Buzzer
F40Ignition Switch, Starter Relay
G40Cooling Fan Relay No.1, Cooling Fan Relay No.3
H40Cooling Fan Relay No.2
I50ABS
J- -
K30Accessory Relay No.2 (Fuse: "2", "3")
L30ABS
M50Body Control Module (BCM), Automatic Drive Positioner Control Unit, Power Seat, Power Window, Sunroof, Rear Wiper, Interior Lighting, Turn Signal Lights, Hazard
Relay
R1Horn
R2Accessory No.2



Fusible Link Block

2003-2008 Infiniti FX35 and Infiniti FX45 Fusible Link Block Description

Fuses Specifications
No.ADescription
A120Alternator, Fuse: "B", "C"
B100Fuse: "32", "33", "34", "35", "36", "37", "38", "F", "G", "H", "I", "K", "L", "M"
C80Headlamp High Relay (Fuse: "72", "74"), Headlamp Low Relay (Fuse: "76", "86"), Fuse: "71", "73", "75", "87", "88"
D60Accessory Relay (Fuse: "4", "6", "7"), Blower Relay (Fuse: "10", "11"), Fuse: "17", "18", "19", "20", "21", "22"
E80Ignition Relay (Air Conditioner Relay, Front Wiper Relay, Front Wiper High Relay, Fuse: "81", "82", "83", "84", "85", "89"), Fuse: "77", "78", "79", "80"

Engine Compartment Relay Box No.1

2003-2008 Infiniti FX35 and Infiniti FX45 Brake Hold Relay Location

Relay Description
No.Description
R1Daytime Light
R2ICC Brake Hold
R3Rear Window Defogger

Engine Compartment Relay Box No.2

2003-2008 Infiniti FX35 and Infiniti FX45 Back-Up Lamp Relay Location

Relay Description
No.Description
R1Back-Up Lamp
R2 -
