2010-2012 Lincoln MKZ

Категория: Lincoln / MKZ
2010-2012 Lincoln MKZ

Location and description of fuses and relay Lincoln MKZ and Lincoln MKZ Hybrid with gasoline engine 3.5L V6 Duratec and 2.5L Duratec Hybrid (2010, 2011, 2012)



Engine Compartment Fuse Box (except Hybrid)

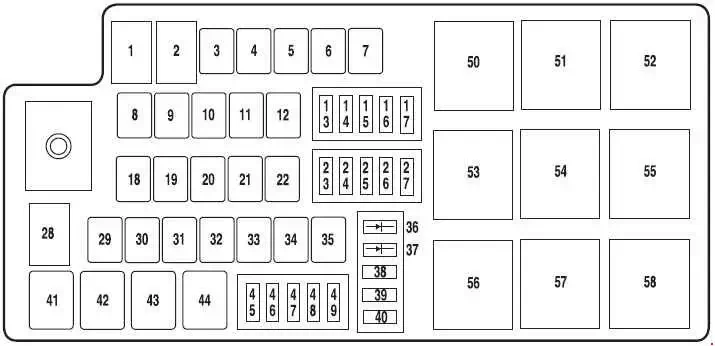

2010-2012 Lincoln MKZ - Diagram of Fuse Box

Fuses Specifications
No.ADescription
1--
2--
340Powertrain control module (PCM) (relay 57 power)
4--
530Starter motor (relay 55 power)
640Rear defrost (relay 53 power)
7--
840Anti-lock brake system (ABS) pump
920Wipers washer
1030ABS valves
11--
1230Heated/cooled seats
13--
14--
15--
1615Transmission module
1710Alternator
18--
19--
2020Audio amplifier
2120Audio amplifier
2220Console power point
2310PCM - Keep alive power, Canister vent
24--
2510A/C clutch (relay 43 power)
2615Left headlamp (relay 42 power)
2715Right headlamp (relay 44 power)
2880Cooling fan motor
2920Front power point
3030Fuel relay (relay 54 power)
3130Passenger power seat
3230Driver power seat
3320Moon roof motor power feed
34--
3540Front A/C blower motor (relay 52 power)
3810Heated side mirrors
39--
40--
4515Injectors
4615PCM
4710General powertrain components, A/C clutch, back-up lamps
4815Ignition coils
4915Emissions related powertrain components
Diode
36Fuel pump
37One-touch start
Relay
41Backup lamps
42Left headlamps
43A/C clutch
44Right headlamps
50-
51-
52Blower motor
53Rear defrost
54Fuel
55Starter
56-
57PCM
58-

Passenger Compartment Fuse Box

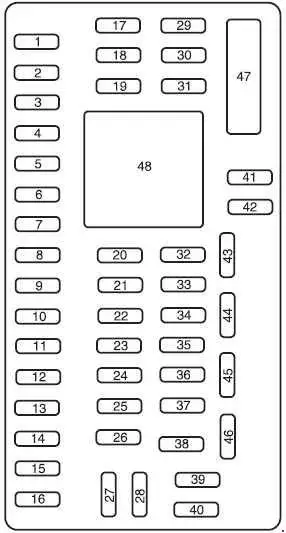

2010-2012 Lincoln MKZ - Diagram of Fuse Block

Fuses Specifications
No.ADescription
130Driver smart window motor
215Brake on/off switch, Center high-mounted stop lamp
315Except Hybrid: - (Spare)
Hybrid: HEV battery fan
430Passenger front smart window motor
510Keypad illumination, Brake shift interlock
620Turn signal lamps
710Low beam headlamps (left)
810Low beam headlamps (right)
915Courtesy Ughts/Illuminated scuff plate
1015Backlighting, Puddle lamps
1110Except Hybrid: AWD module
127.5Memory modules, Memory seat/mirrors switches
135SYNC® module
1410Electronic finish panel (EFP) radio and climate control buttons module, Navigation display, Center information display, GPS module, Ambient lighting
1510Climate control
1615- (Spare)
1720Door locks, Trunk release
1820Except Hybrid: - (Spare)
Hybrid: Heated seat module
1925- (Spare)
2015On-Board Diagnostic connector
2115Fog lamps
2215Front sidemarker lamps, Park lamps, License plate lamp
2315High beam headlamps
2420Horn
2510Demand lamps/power saver relay
2610Instrument cluster battery power
2720Ignition switch
285Radio crank sense circuit
295Instrument cluster ignition power
305- (Spare)
3110- (Spare)
3210Restraint control module
3310- (Spare)
345- (Spare)
3510Rear park assist, Blind spot monitor system, Rear video camera, AWD
365Passive anti-theft sensor (PATS) transceiver
3710Except Hybrid: - (Spare)
Hybrid: Humidity sensor fan
3820Subwoofer amplifier
3920Radio
4020- (Spare)
4115Automatic dimming mirror, Moon roof, Compass, Front windows
4210Electronic stability control, Adaptive headlamps
4310Rain sensor
4410Fuel diode/Powertrain control module
455Heated backlight and blower relay coil, Wiper washer
467.5Occupant classification sensor (OCS) module, Passenger airbag off lamp
4730Circuit Breaker: Rear windows
Relay
48Delayed accessory

Engine Compartment Fuse Box (only Hybrid)

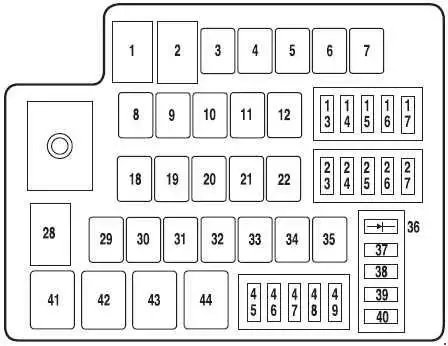

2010-2012 Lincoln MKZ Hybrid - Fuse Box Chart

Fuses Specifications
No.ADescription
150Electronic power assist steering B+
250Electronic power assist steering B+
340Powertrain control module (aux relay 5 power)
4--
5--
640Rear defrost (aux relay 4 power)
740'11: Vacuum pump (aux relay 6 power)
30'12: Vacuum pump (aux relay 6 power)
850Brake system controller pump
920Wiper washer
1030Brake system controller valves
11--
1230Heated-cooled seats
1315Motor electronics coolant/heater pump (relay 42 & 44 power)
14--
15--
16--
1710HEV high voltage battery module
18--
19--
2020THX Radio
2120THX Radio
2220Console power point
2310Powertrain control module/ Transmission control module keep-alive power, Canister vent
24--
25--
2615Left headlamp (aux relay 1 power)
2715Right headlamp (aux relay 2 power)
2860Cooling fan motor
2920Front power point
3030Fuel relay (relay 43 power)
3130Passenger power seat
3230Driver power seat
3320Moon roof
34--
3540Front A/C blower motor (aux relay 3 power)
375Vacuum pump monitoring
3810Heated side mirrors
3910Transmission control module
4010Powertrain control module
4515Injectors
4615Coil on plugs
4710Powertrain control module (general): Heater pump, Motor electronics coolant pump relay coils, DC/DC converter, Back-up lamps, Brake controller
4820HEV high voltage battery module, Fuel pump relay
4915Powertrain control module (emissions related)
Diode
361Fuel pump
Relay
41Backup lamps
42Heater pump
43Fuel pump
44Motor electronics coolant pump

Additional Relay Box (only Hybrid)

2010-2012 Lincoln MKZ - Relay Location
Relay Block
No.Description
1Left headlamp
2Right headlamp
3Blower motor
4Rear window defogger
5Powertrain control module
6Vacuum pump cut-off
7Vacuum pump
