'07-'11 Toyota Camry (XV40)

Location and description of fuses and relays Toyota Camry CE, SE, LE and XLE (XV40) with gasoline engine 2.5L (2AR-FE), and 3.5L V6 (2GR-FE) (2006, 2007, 2008, 2009, 2010, 2011)



Engine Compartment

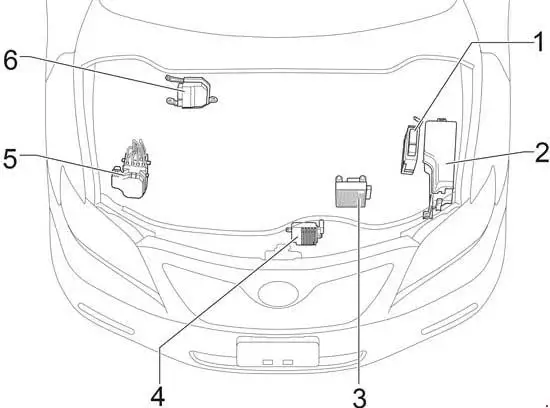

Toyota Camry (2006-2011) Location of the Fuse Box
  1. Engine Control Module (2AZ-FE)
  2. Fuse Box
  3. Transmission Control ECU
  4. Cooling Fan ECU
  5. Skid Control ECU with Actuator
  6. Engine Control Module (2GR-FE)

Engine Compartment Fuse Box

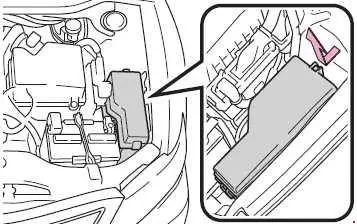

2006-2011 Toyota Camry - Location of the Fuse Box

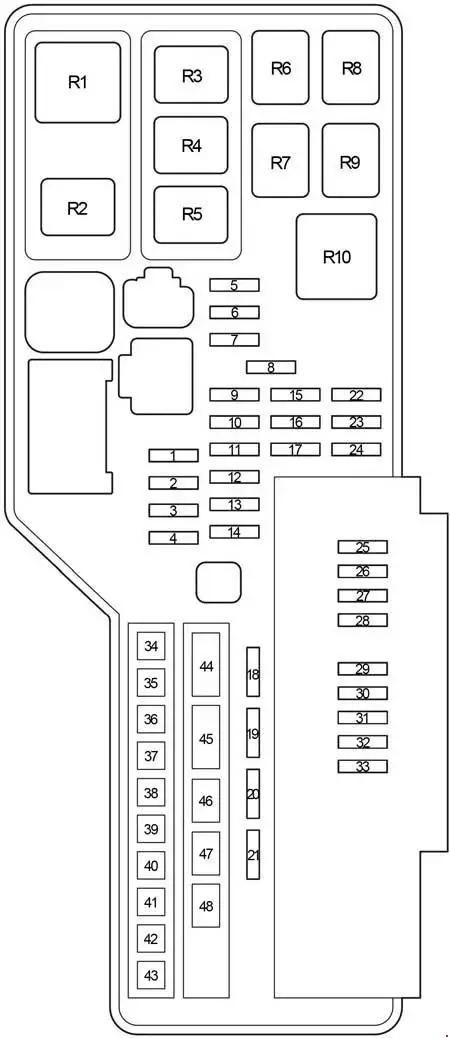

Toyota Camry (2006-2011) Diagram of the Fuse Box

Fuses Specifications
No.NameADescription
1--Not used
2RR FOG10Rear fog light
3FR DEF15
4--Not used
5AM27.5Starting system
6ALT−S7.5Charging system
7MAYDAY/TEL7.5No circuit
8--Not used
9EFI2302AR-FE (2009-2011): Multiport fuel injection system/sequential multiport fuel injection system
10E−ACM102GR-FE: No circuit
11ETCS10Electronic throttle control system
12HAZ15Turn signal lights, gauge and meters
13IG220Multiport fuel injection system/sequential multiport fuel injection system, starting system, GAUGE NO.2, IGN, INJ
14STR LOCK20Steering lock system
15DOME10Gages and meters, vanity lights, trunk light, ignition switch light, door courtesy lights, interior light, personal lights, clock, smart key system
16ECU−B NO.110Wireless remote control system, front passenger occupant classification system, main body ECU, vehicle stability control system
17RADIO NO.115Audio system, navigation system
18DOOR NO.125Main body ECU
19---
20AMP25Audio system
21EFI MAIN30Multiport fuel injection system/sequential multiport fuel injection system, electronic throttle control system, main body ECU, "EFI NO.2” and "EFI NO.3” fuses
22--Not used
23EFI NO.310Multiport fuel injection system/sequential multiport fuel injection system
24EFI NO.215Multiport fuel injection system/sequential multiport fuel injection system
25S−HORN7.5Horn
26A/F20Multiport fuel injection system/sequential multiport fuel injection system
27MPX−B10Gages and meters
28EFI NO.110Theft deterrent system, smart key system, multiport fuel injection system/sequential multiport fuel injection system, electronic throttle control system
29HORN10Horns
30H−LP (RL)15Right−hand headlight (low beam)
31H−LP (LL)15Left−hand headlight (low beam)
32H−LP (RH)15Right−hand headlight (high beam)
33H−LP (LH)15Left−hand headlight (high beam)
34HTR50Air conditioning system
35ABS NO.150Anti−lock brake system, vehicle stability control system, traction control system, brake assist system
36FAN MAIN502GR-FE: Electric cooling fans
37ABS NO.230Anti−lock brake system, vehicle stability control system, traction control system, brake assist system
38RR DEF50Rear window defogger, "MIR HTR” fuse
39RR PWR SEAT30No circuit
40H−LP CLN30No circuit
41CDS FAN402AR-FE: Electric cooling fans
42RDI FAN402AR-FE: Electric cooling fans
43MSB30No circuit
44ALT120"RR FOG”, "FR DEF”, "AM2”, "ALT−S”, "MAYDAY/TEL”, "E−ACM”, "ETCS”, "HAZ”, "IG2”, "STR LOCK”, "DOME”, "ECU−B NO.1”, "RADIO NO.1”, "EFI MAIN”, "AMP”, "DOOR NO.1”, "EFI NO.3”, "EFI NO.2”, "S−HORN”, "A/F”, "MPX−B”, "EFI NO.1”, "HORN”, "H−LP(RL)”, "H−LP(LL)”, "H−LP(RH)”, "H−LP(LH)”, "HTR”, "ABS NO.1”, "FAN MAIN”, "ABS NO.2”, "RR DEF”, "RR PWR SEAT”, "H−LP CLN”, "CDS FAN”, "RDI FAN”, "MSB”, "ALT” and "ST/AM2” fuses
45--Not used
46--Not used
47--Not used
48ST/AM230Starting system, GAUGE NO.2, IGN, INJ
Relay
R1VSC No.2
R2VSC No.1
R32AZ-FE: Electric cooling fan (No.1)
R42AZ-FE: Electric cooling fan (No.3)
R52AZ-FE: Electric cooling fan (No.2)
2GR-FE: Electric cooling fan
R6Starter
R7Ignition
R8MGC Relay
R9ST CUT Relay
R10Rear window defogger


Passenger Compartment

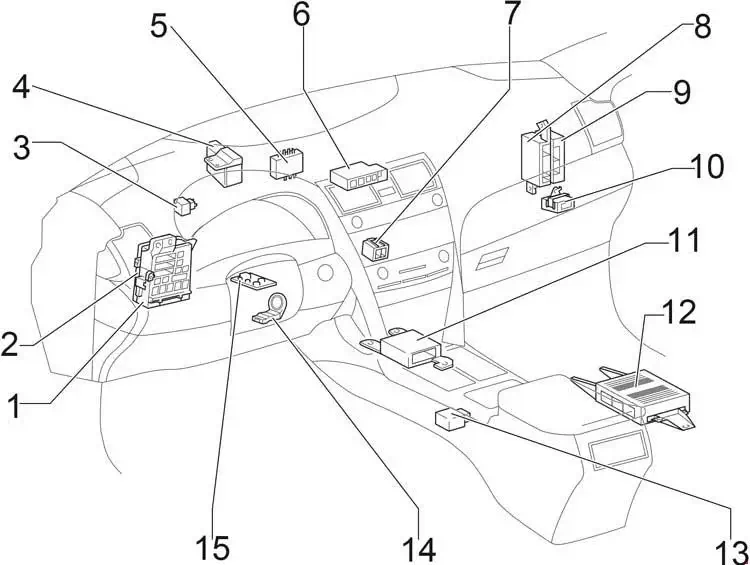

2006-2011 Toyota Camry - Location of the Control Units
  1. Fuse Box
  2. Main Body ECU
  3. Turn Signal Flasher
  4. Junction Block No.3
  5. ID Code Box (with Smart System)
    Transponder Key ECU (without Smart System)
  6. Junction Connector (CAN)
  7. Junction Block No.4
  8. A/C Amplifier
  9. Certification ECU
  10. Tire Pressure Warning ECU
  11. Airbag Sensor Assembly Center
  12. Stereo Component Amplifier
  13. Shift Lock Control ECU
  14. Transponder Key Amplifier
  15. Steering Lock ECU

Passenger Compartment Fuse Box

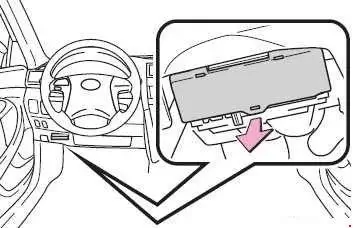

2006-2011 Toyota Camry - Location of the Fuse Panel
2006-2011 Toyota Camry - Scheme of the Fuse Panel

Fuses Specifications
No.NameADescription
1RR DOOR RH25Rear right power window
2RR DOOR LH25Rear left power window
3FUEL OPN7.5No circuit
4FR FOG15Front fog lights
5OBD7.5On−board diagnosis system
6ECU−B NO.27.5Power windows
7STOP10Stop lights, high mounted stoplight, shift lock control system, multiport fuel injection system/sequential multiport fuel injection system, main body ECU, anti−lock brake system, vehicle stability control system, traction control system, brake assist system, electronic throttle control system
8TI&TE30No circuit
9--Not used
10AM17.5Multiport fuel injection system/sequential multiport fuel injection system
11A/C7.5Air conditioning system
12PWR25Power windows
13DOOR NO.225Main body ECU
14S/ROOF30Moon roof
15TAIL15Front side marker/parking lights, stop/tail lights, rear side marker lights, license plate lights, back-up lights, front turn signal lights, main body ECU
16PANEL7.5Navigation system, seat heaters, emergency flashers, air conditioning system, audio system, clock, glove box light, instrument panel lights, steering switches, vehicle stability control system, traction control system
17ECU IG NO.110Main body ECU, windshield wipers and washer, moon roof, tire pressure warning system, electric cooling fans, auto anti-glare inside rear view mirror, navigation system
18ECU IG NO.27.5Anti-lock brake system, vehicle stability control system, traction control system, brake assist system, shift lock control system, automatic transmission, cruise control system
19A/C NO.210Air conditioning system, rear window defogger
20WASH10Windshield wipers and washer
21S-HTR20Seat heaters
22GAUGE NO.110Emergency flashers, charging system, multiport fuel injection system/sequential multiport fuel injection system, back-up lights
23WIP25Windshield wipers and washer
24H−LP LVL7.5No circuit
25INJ15Multiport fuel injection system/sequential multiport fuel injection system, starting system
26IGN10Multiport fuel injection system/sequential multiport fuel injection system, theft deterrent system, SRS airbag system, steering lock system, front passenger occupant classification system, smart key system, electronic throttle control system
27GAUGE NO.27.5Gages and meters, multi−information display, clock
28ECU−ACC7.5Clock, main body ECU, shift lock control system, outside rear view mirror, smart key system
29CIG20Power outlet
30PWR OUTLET20Power outlet
31RADIO NO.27.5Audio system, navigation system
32MIR HTR10Outside rear view mirror defoggers

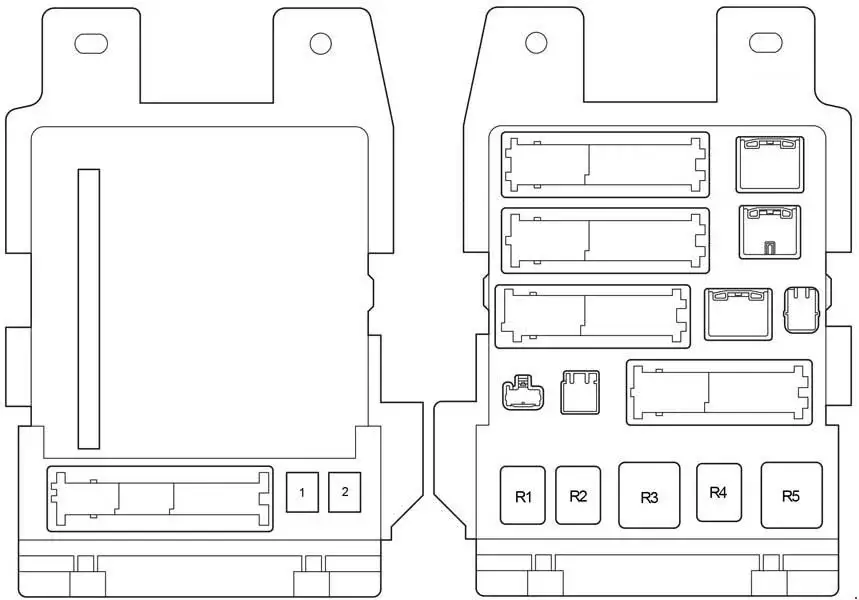

2006-2011 Toyota Camry - Chart of the Fuse Block

Fuses Specifications
No.NameADescription
1P/SEAT30Power seats
2POWER30Power windows
Relay
R1Fog Lights
R2Tail Lights
R3Accessory Relay
R4Power Window
R5IG1 Relay

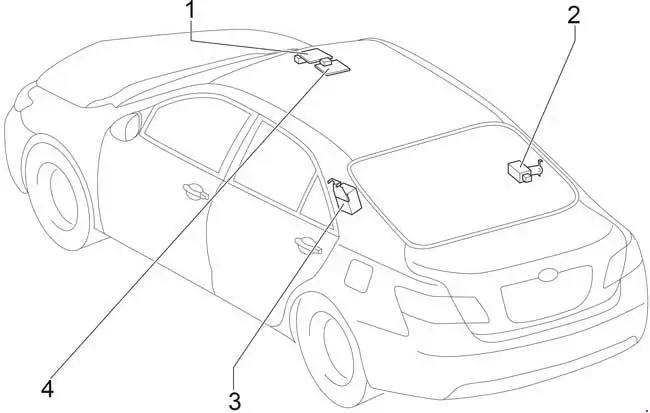

2006-2011 Toyota Camry - Location of the Door Control Receiver
  1. Sliding Roof Control ECU and Motor
  2. Door Control Receiver
  3. Tire Pressure Warning Antenna and Receiver
  4. Overhead Junction Block
