Предохранители и реле SEAT IBIZA SC TROPHY

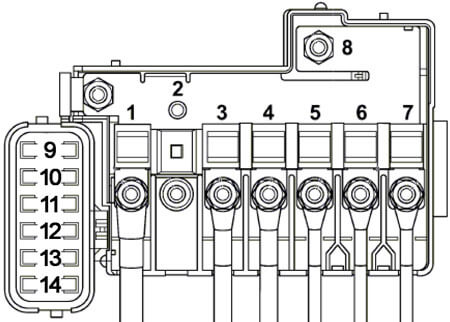

1 - Fuses (SA) to the socked fuses A
2 - Fuses (SB) to the socked fuses B
3 – Not used
4 - Fuses (SC) to the socked fuses C
5 – Additional fuses (SF) to the socked fuses from socked relay.

1. Fuses (SA) on the socked fuses A, in the cockpit

2. Fuses (SB) to the socked fuses B, on the cockpit engine

- Fuse colours
50 A - red
40 A - orange
30 A - green
25 A - white
20 A - yellow
15 A - blue
10 A - rojo
7,5 A - brown
5 A - beige
3 A - purple

4. Fuses (SC) to the socket fuses C bellow dashboard, left hand

Fuses colour
50 A - red
40 A - orange
30 A -green
25 A -white
20 A -yellow
15 A -blue
10 A -red
7,5 A -brown
5 A - beige
3 A - purple
