2006-2008 Honda Fit Fuse Box Diagram

26.10.2019 (US:10.26.19), Category: Honda / Fit

Passenger Compartment

2006-2008 Honda Fit Fuse Box Diagram

  1. Fuse Box

Passenger Compartment Fuse Box



No.
A
Protected Component
1 10 Back-up Lights, A/T Reverse Relay
2 -  -
3 10 Gauge Control Module, Keyless Receiver Unit, Security Control Unit, Electronic Power Steering (EPS) Control Unit, Imoes Unit, Tire Pressure Monitoring System (TPMS) Control Unit Control Unit
4 10 Gauge Control Module (Turn Signal/Hazard Circuit)
5 -  -
6 30 Windshield Wiper Motor, Windshield Washer Motor, Rear Window Washer Motor
7 10 Occupant Detection System (ODS) Unit, Supplemental Restraint System (SRS) Unit
8 7.5 Daytime Running Lights Control Unit
9 20 Rear Window Defogger
10 7.5 Left Mirror, Right Mirror, Rear Window Defogger Switch Indicator Light, Rear Window Defogger Relay, Blower Motor Relay, Radiator Fan Relay, A/C Compressor Clutch Relay, A/C Condenser Fan Relay
11 15 ECM/PCM, Immobilizer Control Unit-Receiver, Fuel Pump
12 10 Power Window Relay, Power Window Master Switch, Rear Window Wiper Motor
13 10 Supplemental Restraint System (SRS) Unit
14 15 PGM-FI Main Relay No.1, PGM-FI Main Relay No.2, ECM/PCM
15 20 Left Rear Window Motor
16 20 Right Rear Window Motor
17 20 Front Passenger's Window Motor
18 10 Daytime Running Lights Control Unit
7.5 Tire Pressure Monitoring System (TPMS) Control Unit
19 -  -
20 -  -
21 20 Fog Lights
22 10 Taillight Relay, Illumination Lights, Left Front Side Marker/Parking Light, Right Front Side Marker/Parking Light, Left Taillight, Right Taillight, License Plate Light, Left Rear Side Marker Light/Taillight, Right Rear Side Marker Light/Taillight
23 10 Air Fuel Ratio (A/F) Sensor, Evaporative Emission Control (EVAP) Canister Vent Shut Valve
24 -  -
25 7.5 ABS Modulator-Control Unit
26 7.5 Audio Unit, Gauge Control Module, Key Interlock Solenoid
27 15 Accessory Power Socket
28 20 Driver's Door Lock Actuator, Front Passenger's Door Lock Actuator, Left Rear Door Lock Actuator, Right Rear Door Lock Actuator, Tailgate Lock Actuator
29 20 Driver's Window Motor, Power Window Master Switch
30 -  -
31 7.5 Air Fuel Ratio (A/F) Sensor Relay
32 15 Throttle Actuator Control Module
33 15 Ignition Coil Relay
Relay
R1 Starter Cut
R2 Power Window
R3 Blower Motor
R4 A/T Reverse
R5 Door Lock
R6 Driver's Door Unlock
R7 Passenger's Door Unlock / Tailgate Unlock
R8 Taillight
R9 Ignition Coil
R10 PGM-FI Main No.2 (Fuel Pump)
R11 PGM-FI Main No.1
R12 Throttle Actuator Control Module
R13 Rear Window Defogger
R14 Air Fuel Ratio (A/F) Sensor
R15 Fog Light

  1. Security Control Unit
  2. Electronic Power Steering (EPS) Control Unit
  3. Tire Pressure Monitoring System (TPMS) Control Unit
  4. Daytime Running Lights Control Unit
  5. Audio Unit
  6. Throttle Actuator Control Module
  7. Low Beam Cut Relay
  8. Daytime Running Lights Relay
  9. Imoes Unit
  10. Keyless Receiver Unit

  1. Immobilizer Control Unit-Receiver
  2. Supplemental Restraint System (SRS) Unit
  3. ECM/PCM

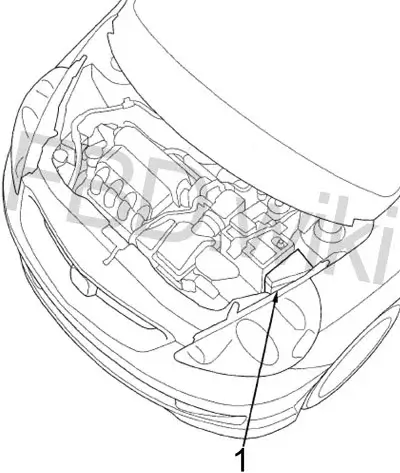

Engine Compartment

  1. Fuse Box

Engine Compartment Fuse Box



No.
A
Protected Component
1 80 Battery, Power Distribution
2 60 Electronic Power Steering (EPS) Control Unit
3 50 Ignition Switch
4 30 ABS Modulator-Control Unit
5 40 Blower Motor
6 40 Fuses: No. 14, 15, 16, 17, 28, 29
7 30 Fuses: No. 18, 21
8 10 Keyless Receiver Unit, Gauge Control Module, Security Control Unit, Immobilizer Control Unit-Receiver, Audio Unit, Imoes Unit
9 30 Fuses: No. 22, 23
10 30 Radiator Fan Motor
11 30 A/C Condenser Fan Motor, A/C Compressor Clutch
12 20 Right Headlight
13 20 Left Headlight, High Beam Indicator
14 10 Gauge Control Module (Turn Signal/Hazard Circuit)
15 30 ABS Modulator-Control Unit
16 15 Horn Relay, Horn, ECM/PCM, Brake Lights, High Mount Brake Light
Relay
R1 Electrical Load Detector (ELD)
R2 Radiator Fan
R3 Horn
R4 Headlight
R5 A/C Condenser Fan
R6 A/C Compressor Clutch

Fuse Box Layout Honda Fit Base, Sport, DX & LX - 1.5L L15A (2006, 2007, 2008)
