1994-1998 Saab 900
Fuse Box Layout Saab 900 NG - 2.0L (B204), 2.3L (B234) and 2.5L V6 (B258I) (Convertible & Hatchback; 1994, 1995, 1996, 1997, 1998)

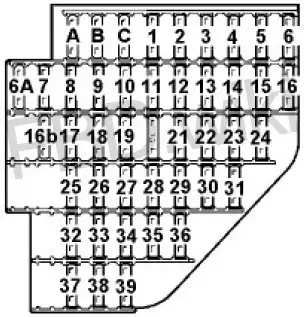

Passenger Compartment Fuse Box
| No. | A | Function |
|---|---|---|
| A | - | - |
| B | - | - |
| C | - | - |
| 1 | 30 | Heated Rear Window and Door Mirror |
| 2 | 15 | Direction Indicator |
| 3 | 30 | Ventilation Fan |
| 4 | 7.5 | Interior Lighting, Power Antenna |
| 5 | 30 | Power Seat (Right) |
| 6 | 30 | Cigarette Lighter |
| 6B | - | - |
| 7 | 30 | 5-Door Hatchback: Rear Power Windows |
| 7.5 | Convertible: Door Window Motors | |
| 8 | 15 | Rear Window Wiper |
| 9 | 15 | '94-'96: Radio |
| 15 | '97-'98: Shift Interlock | |
| 10 | 30 | Sensonic |
| 11 | 7.5 | '97-'98: Radio |
| 12 | 15 | Stop Lights |
| 13 | 15 | Radio, Data Link Connector |
| 14 | 30 | Front Power Windows |
| 15 | 20 | Daytime Driving Lights (DRL) |
| 16 | 30 | Power Front Seat (Left) |
| 16B | 30 | Fuel Injection Relay |
| 17 | 15 | Instruments, Trionic SFI, Transmission Control Module (TCM), Anti-Theft Alarm, Sensonic |
| 18 | 15 | '94-'96: Instruments, Air Bag |
| 10 | '97-'98: Airbags | |
| 19 | 15 | ABS, A/C Relay, Air Pump Relay ('97-'98) |
| 20 | 20 | Heated Front Seats, Central Locking |
| 21 | 10 | A/C, Automatic Climate Control (ACC), ICE (Integrated Central Electronics) |
| 22 | 15 | Cruise Control System |
| 23 | 20 | Anti-Theft Alarm, Telephone |
| 24 | 10 | '94-'96: APC |
| 25 | 30 | '94-'96: Central Locking, Amplifier |
| 15 | '97-'98: Central Locking System (Boot Lid/Tailgate), Amplifier | |
| 26 | 7.5 | '97-'98: Heated Rear Seats |
| 27 | 15 | Full & Dipped Beam, Automatic Climate Control (ACC) |
| 28 | 30 | Traction Control System (TCS), Trionic SFI, Motronic SFI, Fuel Injection |
| 29 | 7.5 | '94-'96: Right Parking Lights |
| 10 | '97-'98: Right Parking Lights, License Plate Light, Dimmer Switch | |
| 30 | 10 | Left Parking Lights |
| 31 | 15 | '94-'96: Reversing Lights, Windsreen Wipers |
| 20 | '97-'98: Windscreen Wipers, Reversing Lights | |
| 32 | 10 | '94-'96: Fuel Pump |
| 15 | '97-'98: Fuel pump | |
| 33 | 30 | '94-'96: Direction Indicator |
| 15 | '97-'98: Heated Rear Seats | |
| 34 | 10 | Instruments, Saab Information Display (SID), Transmission Control Module (TCM) |
| 35 | 10 | ICE (Integrated Central Electronics) |
| 36 | 10 | Starter Motor |
| 37 | 10 | Rear Foglights |
| 38 | 7.5 | '94-'96: Heated Oxygen Sensor |
| 25 | '97-'98: Heated Oxygen Sensor (Lambda) | |
| 39 | - | - |
Passenger Compartment Relay Box
| No. | Relay |
|---|---|
| A | Rear Fog Light |
| B | Back-Up Lights |
| C | Shift Lock |
| D | Rear Window Wiper |
| E | Ignition Switch |
| F | Overheated 3-Way Catalytic Converter EXH |
| G | Windscreen Wipers |
| H | Rear Window Defoger and Mirror |
| I | Fuel Pump |
| J | Washer Fluid Pump |
| K | Starter |
| L | Fuel Injection System |
| Auxiliary Holder | |
| N | Heated Rear Seats |

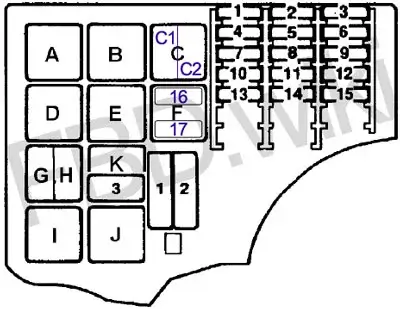

Engine Compartment Fuse Box
| No. | A | Function |
|---|---|---|
| 1 | 10 | Horn |
| 2 | 15 | Fog Lights |
| 3 | 40 | Radiator Fan (Low Speed) |
| 4 | 10 | Vacuum Pump |
| 5 | 15 | A/C Compressor Relay |
| 6 | 15 | '94-'96: Left Low Beam |
| 10 | '97-'98: Left Low Beam | |
| 7 | 15 | '94-'96: Right Low Beam |
| 10 | '97-'98: Right Low Beam | |
| 8 | 15 | '94-'96: Left High Beam |
| 10 | '97-'98: Left High Beam | |
| 9 | 15 | '94-'96: Right High Beam |
| 10 | '97-'98: Right High Beam | |
| 10 | 7.5 | Headlamp Wipers |
| 11 | 10 | '94-'96: Headlamp Beam Adjustment |
| 12 | 10 | Secondary Air Valve |
| 13 | 7.5 | '97-'98: APC |
| 14 | 7.5 | '97-'98: Spotlights |
| 15 | - | - |
| 16 | 60 | '97-'98: Heater Plates |
| 17 | 30 | '97-'98: Air Pump, Secondary Air Injection |
| 1M | 30 | Radiator Fan (High Speed) |
| 2M | 60 | '94-'96: ABS |
| 50 | '97-'98: ABS | |
| 3M | 30 | '94-'96: Secondary Air Injection Pump |
| Relays | ||
| A | Lighting | |
| Low Beam | ||
| B | High & Low Beam | |
| High Beam | ||
| C | '94-'96: Secondary Air Injection Pump | |
| C1 | '97-'98: Secondary Air Injection Control Valve | |
| C2 | '97-'98: Vacuum Pump | |
| D | Radiator Fan (Low Speed) | |
| E | Build Check | |
| F | Foglights | |
| G | Horn | |
| H | '94-'96: Secondary Air Injection Control Valve | |
| '97-'98: Fog Lights | ||
| I | Radiator Fan (High Speed) | |
| J | A/C and Automatic Climate Control (ACC) | |
| K | '97-'98 (Motronic): Secondary Air Injection Pump | |
| '97-'98 (Trionic): Heater Plates | ||

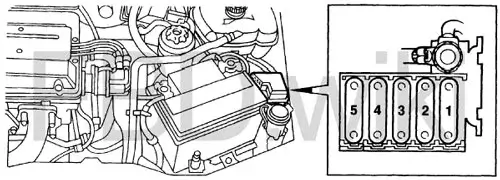

Fusible Link Block
| No. | A | Circuit Protected |
|---|---|---|
| 1 | 60 | Power Supply for Fuses: 1, 4, 11, 13, 17, 23, 24, 25, 26 & 34 |
| 2 | 60 | Power Supply for Fuses: 2, 5, 10, 12, 16, 27, 28, 33 & 35 |
| 3 | 60 | Power Supply for Ignition Switch Fuse 20 |
| 4 | 60 | Power Supply for Ignition Switch Fuse 21 |
| 5 | 60 | Power Supply for Cabriolet Hood Control System |

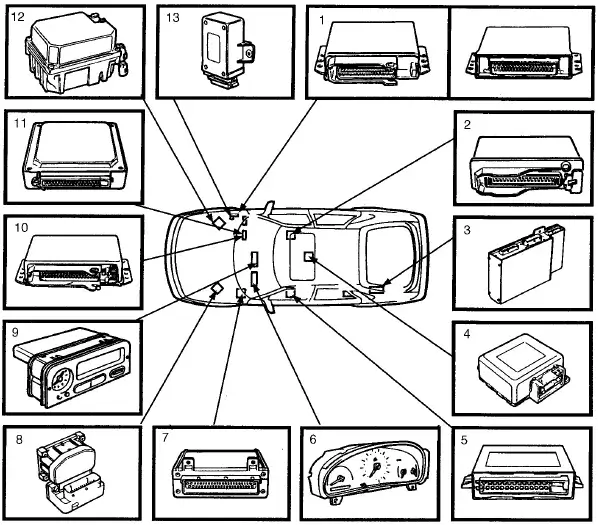

'94→
- Engine Control Module (ECM)
- Traction Control System (TCS) Control Module
- Air Bag Control Module
- Anti-Theft Alrm Control Module
- Integrated Central Electronics (ICE) Control Module
- ABS Control Module
- Main Instrument Display & Saab Information Display (SID) Unit
- Transmission Control Module (TCM)
- Cruise Control Module
- Central Locking Control Module

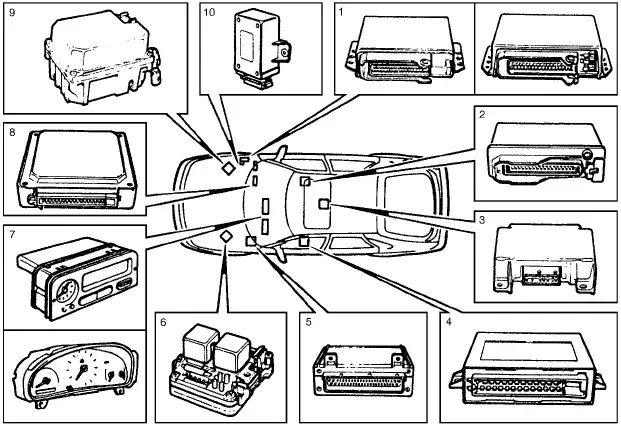

→'98
- Engine Control Module (ECM)
- Traction Control System (TCS) Control Module
- TSAS Control Module
- Air Bag Control Module
- Anti-Theft Alrm Control Module
- Main Instrument Display
- Integrated Central Electronics (ICE) Control Module
- ABS Control Module
- Saab Information Display (SID) Unit
- Sensonic Control Module
- Transmission Control Module (TCM)
- Cruise Control Module
- Central Locking Control Module
