1975-1978 Ford E100, E150, E250, E350 Fuse Box Diagram

09.10.2019 (US:10.09.19), Category: Ford / E-Series

1975-1978 Ford E100, E150, E250, E350 Fuse Box Diagram



No. A Description
1 3 Instrument Panel & Cluster Lamps, Ash Tray, Transmission Indicator & Radio Lamps, Headlamp & Windshield Wiper Illumination, Air Conditioning Lamp & Heater
2 7.5 Circuit Breaker: Windshield Wiper & Washer
3 7.5 Auxiliary Tank Solenoid
4 7.5 Throttle Solenoid
5 20 Emergency Flashers & Stop Lamps
6 15 Dome, Cargo & Courtesy Lamps, Cigar
7 15 Accessory Feed
8 14 Turn Signal & Back-Up Lamps
9 7.5 Radio
10 30 Heater and/or Air Conditioning

Circuit Breaker:

  • 15 Amp. — Located integral with headlight switch; protects tail, license, parking and marker lights, horn.
  • 12 Amp. — Located intergral with headlight switch; protects headlight circuits.

In-Line Fuses:

  • In-line fuses are used to protect the following: Air conditioner, fog lights, radio, auxiliary heater and spotlight.

Fusible Links:

  • Fusible links are used as follows for circuit protection: Separate links in starter motor relay for protection of air conditioner, alternator and dual batteries. Alternator is also protected by a link located at electric choke.

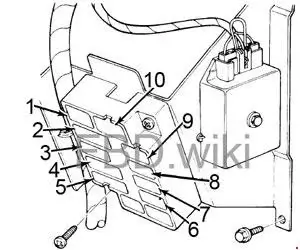

Fuse Panel Diagram Ford Econoline / Club Wagon: E100, E150, E250, E350 (1975, 1976, 1977, 1978)
